MZ801 small landing ships (1943-1944/1945 - 1946)

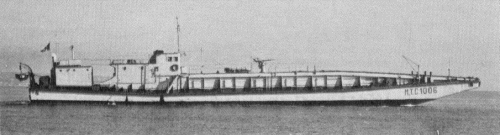

similar MTC1006 1974

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
MZ360 (ex-F360A), 5.1950- MTC1107 1953- A5357   CNR, Palermo   28.6.1941 8.1942 // 1945 discarded 1980? "MFP" type
GLS435 (ex-F435C), 5.1950- MTC1102 1953- A5352   J. Smit, Foxhol, Netherlands   9.8.1941 11.1942 // 1946 discarded 1960 "MFP" type
GLS436 (ex-F436C), 5.1950- MTC1103 1953- A5353   J. Smit, Foxhol, Netherlands   9.8.1941 4.1943 // 1946 discarded 10.1970 "MFP" type
GLS437 (ex-F437C), 5.1950- MTC1104 1953- A5354   J. Smit, Westerbroek, Netherlands   9.8.1941 11.1942 // 1946 discarded 7.1968 "MFP" type
MZ831 (ex-F831D), 5.1950- MTC1010 1953- A5350       21.5.1942 12.1943 // 1946 discarded 8.1968 "MFP" type
MZ1155 (ex-F1155D), 5.1950- MTC1108     CNQ, Fiume   10.6.1943 10.1944 // 1945 discarded 5.1950 "MFP" type
MZ1191 (ex-F1191D), 5.1950- MTC1106     CRDA, San Marco   10.6.1943 12.1944 // 1945 discarded 5.1950 "MFP" type
MZ943 (ex-F943DM), 5.1950- MTC1109     CRDA, Monfalcone   5.4.1943 11.1944 // 1946 discarded 5.1950 "MFP-M" type
MZ1045 (ex-F1045DM), 5.1950- MTC1105 1953- A5355   CRDA, Monfalcone   5.4.1943 12.1944 // 1945 discarded 1960 "MFP-M" type
MZ1046 (ex-KF1046, ex-F1046DM), 5.1950- MTC1101 1953- A5351   CRDA, Monfalcone   5.4.1943 1.1945 // 1945 discarded 8.1968 "MFP-M" type


Technical data


Displacement standard, t

MFP-A, C: 155

MFP-D: 168

MFP-DM: 215

Displacement full, t

MFP-A, C: 220

MFP-D: 239

MFP-DM: 256

Length, m

MFP-A, C: 47.0

MFP-D, DM: 49.8

Breadth, m

MFP-A, C: 6.53

MFP-D: 6.59

MFP-DM: 8.59

Draught, m

MFP-A, C: 1.45 deep load

MFP-D, DM: 1.35 deep load

No of shafts

3

Machinery

3 Deutz diesels

Power, h. p.

MFP-A, C: 390

MFP-D, DM: 375

Max speed, kts

MFP-A, C: 10.5

MFP-D: 10.3

MFP-DM: 8

Fuel, t

diesel oil 4.1

Endurance, nm(kts)

MFP-A-C: 1340(7)

MFP-D: 1120(7)

Armament

(1 x 1 - 37/83 SK C/30 + 2 x 1 - 20/65 C/38) or 3 x 1 - 20/65 C/38

Military load

MFP-A, C: 105 t (3 Pz.IV or 2 T-34 or 200 men)

MFP-D: 140 t (3 Pz.IV or 2 Pz.VI or 200 men)

Complement

17 - 21



Standard scale images


<i>MZ831</i>
MZ831
<i>MZ943</i>
MZ943
<i>MZ1046</i>
MZ1046


Graphics


similar MTC1006 1974
similar MTC1006 1974


Project history

Ex-German landing barges of MFP-A, C and D types, transferred after the war.

Modernizations

None.

Naval service

No significant events.
