ATZION GUEBER landing craft (1965)
Shikmona 1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| עציון גבר [Atzion Gueber] | F51 | Israel SYds, Haifa | 1965 | stricken 1991 | |||
| קיסריה [Kessari] | F53 | Israel SYds, Haifa | 1965 | stricken 1991 | |||
| שקמונה [Shikmona] | F55 | Israel SYds, Haifa | 1965 | stricken 1991 |
Technical data
| Displacement standard, t | 182 |
|---|---|
| Displacement full, t | 230 |
| Length, m | F51: 27.5 F53, 55: 36.6 |
| Breadth, m | 7.10 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 1280 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Military load | tanks, troops |
| Electronic equipment | radar |
| Complement | 12 |
Graphics

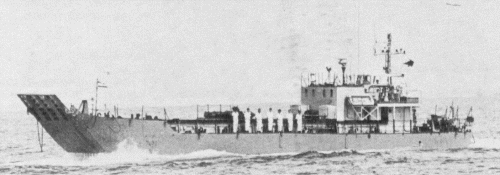

Shikmona 1976
Project history
Usual small LCUs.
Modernizations
None.
Naval service
No significant events.
