Kedma 1970

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
M46 קֵדְמָה [Kedma] M48 יעמ [Yama] M50  אפיקומן [Tzafone] M52 נֶגְבָּה [Negba]	Japan: M46-52	1968: M46-52	none	none	1992: M46-52

Technical data

Displacement standard, t	32
Displacement full, t
Length, m	20.4
Breadth, m	4.60
Draught, m	1.50
No of shafts	2
Machinery	2 diesels
Power, h. p.	1540
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	2 x 1 - 20/70 Mk 10
Electronic equipment	radar
Complement	10

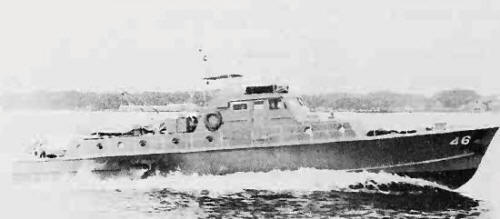

Graphics

Project history

Handy boats of the small seaward defence type. Steel hull. Used for coast guard and police work in peace time.

Modernizations

1980s, may be all: were armed with only 2 x 1 - 12.7/90 or 2 x 1 - 7.6/90

Naval service

No significant events.
