800 1979

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
800	Israeli Aircraft Industries, Be'er Sheva: 800	1979: 800	none	none	1991: 800

Technical data

Displacement standard, t	38
Displacement full, t	47
Length, m	21.6
Breadth, m	5.50
Draught, m	0.9 hull 1.80 propellers
No of shafts	2
Machinery	2 MTU 12V331 TC81 diesels
Power, h. p.	2720
Max speed, kts	36
Fuel, t	diesel oil
Endurance, nm(kts)	700(27)
Armament	2 x 1 Gabriel Mk 1 SSM (2 Gabriel Mk 1), 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Electronic equipment	Decca 926 radar
Complement	10

Standard scale images

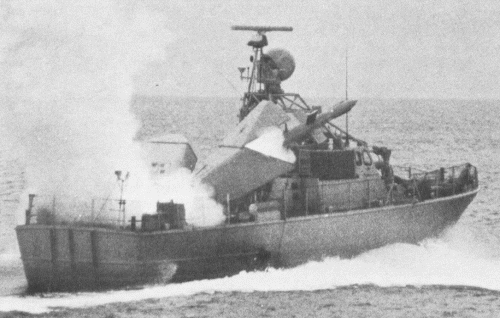

Graphics

Project history

IAI design, similar to Dabur class but smallest ever missile craft. Constructed of aluminium alloy. Because of the small size boat can be transported by land and can also be stored on land to ease maintenance.

Modernizations

1980s: - 2 x 1 Gabriel Mk 1 SSM

Naval service

No significant events.
