Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
830-839 3 more units	Israeli Aircraft Industries, Be'er Sheva: 830-839 and 3 more	2004: 830 2005: 831, 832 2006: 833-835 2007-2009: 836-839 2016: 3 units	none	none	in service (2019): 830-839 and 3 more

Technical data

Displacement standard, t	64
Displacement full, t	72
Length, m	27.4
Breadth, m	5.74
Draught, m	1.20
No of shafts	2 waterjets
Machinery	2 MTU 12V4000 M90 diesels
Power, h. p.	5400
Max speed, kts	49
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 25/75 Typhoon, 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90
Electronic equipment	Sperry Bridgemaster radar, MSIS e/o system
Complement	12

Standard scale images

Graphics

Project history

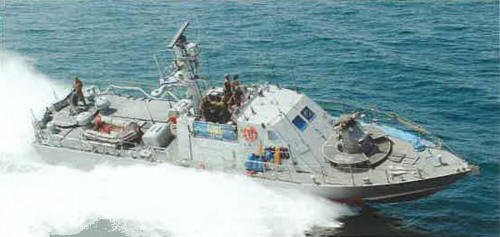

Super Dvora Mk 3, lengthened Mk 2 with modern armament. Aluminium construction. Can be armed with depth charges, ASW torpedoes or 130mm barrage rocket launchers.

Modernizations

None.

Naval service

No significant events.
