IRAQ
COASTAL FORCES
P301 patrol boats (2010-2013)
P304 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| P301 | Swiftships, Morgan City, USA | 26.9.2010 | in service (2019) | ||||
| P302 | Swiftships, Morgan City, USA | 27.12.2010 | in service (2019) | ||||
| P303 | Swiftships, Morgan City, USA | 26.1.2011 | in service (2019) | ||||
| P304 | Swiftships, Morgan City, USA | 13.8.2011 | in service (2019) | ||||
| P305 | Swiftships, Morgan City, USA | 3.11.2011 | in service (2019) | ||||
| P306 | Swiftships, Morgan City, USA | 13.8.2011 | in service (2019) | ||||
| P307 | Swiftships, Morgan City, USA | 22.3.2012 | in service (2019) | ||||
| P308 | Swiftships, Morgan City, USA | 22.3.2012 | in service (2019) | ||||
| P309 | Swiftships, Morgan City, USA | 22.3.2012 | in service (2019) | ||||
| P310 | Swiftships, Morgan City, USA | 17.2.2013 | in service (2019) | ||||
| P311 | Swiftships, Morgan City, USA | 17.2.2013 | in service (2019) | ||||
| P312 | Swiftships, Morgan City, USA | 5.7.2013 | in service (2019) |
Technical data
| Displacement standard, t | 95 |
|---|---|
| Displacement full, t | 100 |
| Length, m | 35.0 |
| Breadth, m | 7.30 |
| Draught, m | 2.50 |
| No of shafts | 3 waterjets |
| Machinery | 3 MTU 16V2000 diesels |
| Power, h. p. | 7800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(12) |
| Armament | 1 x 1 - 30/75 Seahawk DS-30MA2, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Sperry or Furuno FR2115 radars |
| Complement | 25 |
Graphics

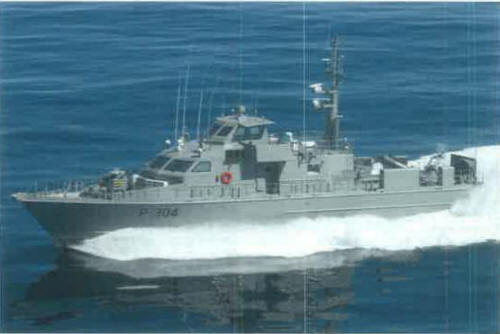

P304 2011
Project history
US 35m Commercial Cruiser class, procured via the US Foreign Military Sales program. Aluminium construction. Fitted with a stern ramp for 7m RIB.
Modernizations
None.
Naval service
No significant events.
