SR N.6 air cushion landing craft (1973-1975)
No 03 1971
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
01-08 |
British Hovercraft Cowes, UK: 01-08 |
1973-1975: 01-08 |
none |
none |
1980s: 01-08 |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | |
| Length, m | 14.8 |
| Breadth, m | 7.70 |
| Draught, m | 0 |
| No of shafts | 1 air propeller |
| Machinery | 1 Rolls-Royce Gnome Mk 1050 gas turbine |
| Power, h. p. | |
| Max speed, kts | 52 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 110(30) |
| Armament | 1 x 1 - 7.6/90 |
| Military load | 55 troops or 6 t cargo |
| Electronic equipment | none |
| Complement |

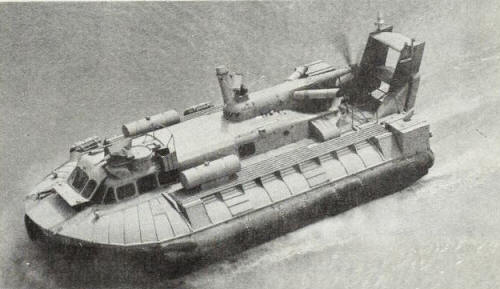

Graphics
No 03 1971
Project history
Air-cushion hovercraft, Winchester SR.N6 class.
Modernizations
None.
Naval service
No significant events.
