FIGHTING SHIPS OF THE WORLD
PERSIA / IRAN
AMPHIBIOUS SHIPS AND CRAFT
FARSI tank landing ships (1985-1986)
1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| فارسی [Farsi] | 24 | Inchon SY, North Korea | 1985 | IRGC, in service (2019) | |||
| سردشت [Sardasht] | 25 | Inchon SY, North Korea | 1986 | IRGC, in service (2019) | |||
| ساب ساحل [Sab Sahel] | 26 | Inchon SY, North Korea | 1986 | IRGC, in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 2015 |
| Length, m | 73.1 |
| Breadth, m | 14.2 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 Daihatsu 6DLM22 diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | 110 troops, 9 tanks |
| Electronic equipment | radar |
| Complement | 30 |

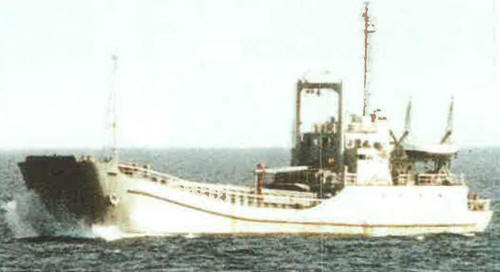

Graphics
1999
Project history
Ordered by merchant fleet but commissioned by IRGC. 'Iran Hormuz 24' project.
Modernizations
None.
Naval service
No significant events.
