Jamaran 2010

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

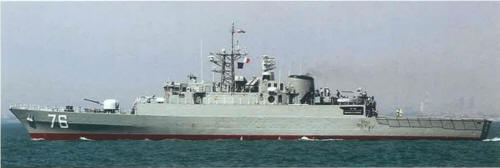

جماران [Jamaran]	76		Bandar Abbas	2004	28.11.2007	19.2.2010	in service (2019)
دماوند [Damavand]	77		Shahid Tamijidi Marine Industries, Bandar Anzali	2009	15.3.2013	9.3.2015	wrecked 10.1.2018
سهند [Sahand]	74		Bandar Abbas	2010	8/2015	1.12.2018	in service (2019)
شیراز [Shiraz]	75		Bandar Abbas	2012	8/2015	2020	building (2019)
	78		Khoramshahr SY	2012	2018	2021	building (2019)
	80		Khoramshahr SY	2013	2019	2022	building (2019)

Technical data

Displacement standard, t	1200
Displacement full, t	1500
Length, m	88.0 pp 94.5 oa
Breadth, m	11.1
Draught, m	4.30
No of shafts	2
Machinery	2 SEMT-Pielstick diesels
Power, h. p.	20000
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	3650(17)
Armament	76: 2 x 2 Noor SSM (4 C-802), 2 x 2 Standard SM-1 MR SSM (4 RGM-66D), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT, helicopter deck 77 and others: 2 x 2 Ghader SSM (4 C-802), 2 x 2 Standard SM-1MR SSM (4 RGM-66D), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 -1 2.7/90, 2 x 3 - 324 Mk 32 TT, helicopter deck
Electronic equipment	76: AWS-1, Decca 1226, nav., Sea Hunter radars, RDL-2AC ECM suite,2 x decoy RL 77 and others: Asr, Decca 1226, nav., Sea Hunter, WM-28 radars, FLIR e/o system, RDL-2AC ECM suite,2 x decoy RL
Complement	125

Standard scale images

Graphics

Project history

Mowj project became a development of Vosper Mk 5 (Alvand-class) design. Sahand and later ships have stealth superstructures forms.

Modernizations

2013, Jamaran: - AWS-1 radar; + Asr radar

Naval service

Damavand ran ashore 10.1.2018 off Bandar Anzali (Caspian Sea) and was completely destroyed by a storm.
