PEYKAN fast attack craft (missile) (2004-)

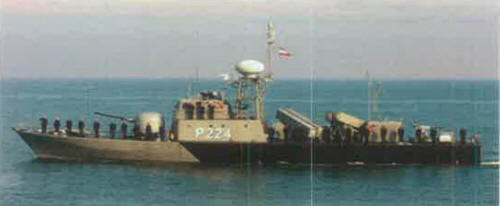

Peykan 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| پیکان [Peykan] | 224 | Shanid Tamjidi SY, Bandar Anzali |
29.9.2003 | 2004 | in service (2019) | ||
| جوشن [Joshan] | 225 | Shanid Tamjidi SY, Bandar Anzali |
2005 | 20.9.2006 | in service (2019) | ||
| درفش [Derafsh] | 233 | Shanid Tamjidi SY, Bandar Anzali |
27.11.2008 | 29.9.2009 | in service (2019) | ||
| سپر [Separ] | 234 | Shanid Tamjidi SY, Bandar Anzali |
28.11.2012 | 2017 | in service (2019) | ||
| 235 | Shanid Tamjidi SY, Bandar Anzali |
2018 | 2019 | building (2019) | |||
| 236 | Shanid Tamjidi SY, Bandar Anzali |
2020 | 2021 | building (2019) | |||
| 237 | Bandar Abbas SY |
2022 | 2023 | building (2019) | |||
| 238 | Bandar Abbas SY |
2024 | 2025 | building (2019) | |||
| 239 | Bandar Abbas SY |
2026 | 2027 | building (2019) |
Technical data
| Displacement standard, t | 249 |
|---|---|
| Displacement full, t | 275 |
| Length, m | 47.0 |
| Breadth, m | 7.10 |
| Draught, m | 1.90 |
| No of shafts | 4 |
| Machinery | 4 MTU 16V538 TB91 diesels |
| Power, h. p. | 14400 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil 41 |
| Endurance, nm(kts) | 700(34) |
| Armament | 2 x 2 Noor SSM (4 C-802), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 1226, WM-28 radars, TMV-433 ECM suite |
| Complement | 31 |
Standard scale images
semi-sister ship Kaman 2010
Graphics
Peykan 2008
Project history
Sina 1 project, repetition of 1970s-built Kaman class of French Combattante II design.
Modernizations
None.
Naval service
No significant events.
