MRL variant 2009

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
611-614 M1-8 6 units	China: 611-614, M1-8, 6 units	2001: 611-616, M1-8, 6 units	none	none	in service Navy (2019): 6 units in service IRGC (2019): 611-614, M1-8

Technical data

Displacement standard, t	17
Displacement full, t	19
Length, m	13.8
Breadth, m	4.80
Draught, m	0.70
No of shafts	2
Machinery	2 diesels
Power, h. p.	2300
Max speed, kts	50
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	611-616: 1 x 1 - 20/90 GAM-B01, 1 x 1 - 12.7/90, 1 x 12 - 122 Grad RL or 2 x 8 - 107 BM-16 RL M1-8: 2 x 2 Nasr SSM (4 C-701), 1 x 2- 23/87 ZU-23-2
Electronic equipment	611-616: radar M1-8: radar, OT-3 e/o director
Complement	10

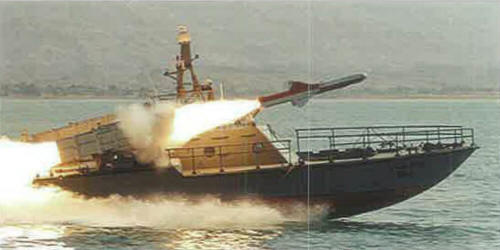

Standard scale images

Graphics

Project history

C-14 (China Cat) class. Catamaran hull.

Modernizations

None.

Naval service

No significant events.
