FIGHTING SHIPS OF THE WORLD
PERSIA / IRAN
COASTAL FORCES
Kashdom II fast attack craft (missile) (2010-2015), Kashdom II patrol boats (2010-2015)
Kashdom IV 2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
15 units |
Iran: 15 units |
2010-2015: 15 units |
none |
none |
in service IRGC (2019): 15 units |
Technical data
| Displacement standard, t | 18 |
|---|---|
| Displacement full, t | 25 |
| Length, m | 16.0 |
| Breadth, m | 3.00 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 C-701 SSM (2 C-701) (not on all), 1 x 1 - 23/87 ZU-23, 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics

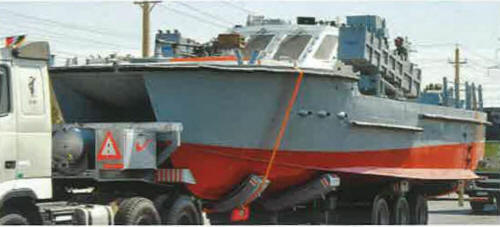

Kashdom IV 2013
Project history
Aluminium construction. Development of C14 class, catamaran hull. MRL launcher may also be mounted on the cabin roof. Missile-armed units may be known as Kashdom III or IV classes.
Modernizations
None.
Naval service
No significant events.
