Pasopati 1978 Many thanks to Wolfgang Stöhr for additional information on this page

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Tjakra (ex-S-79)	S01, later- 401, later- 511		444 Marti Yd, Nikolayev, USSR	18.7.1953	31.12.1953	30.5.1954 // 12.9.1959	stricken 1972
Nanggala (ex-S-91)	S02, later- 402		444 Marti Yd, Nikolayev, USSR	27.10.1953	23.12.1953	28.8.1954 // 12.9.1959	stricken 1972
Nagabanda (ex-S-218)	403		444 Marti Yd, Nikolayev, USSR	28.2.1954	24.5.1954	17.3.1955 // 3.1962	stricken 1976
Trisula (ex-S-235)	404		444 Nosenko Yd, Nikolayev, USSR	31.3.1955	4.6.1955	8.2.1956 // 12.1962	stricken 1974
Nagarangsang (ex-S-219)	405		444 Marti Yd, Nikolayev, USSR	25.3.1954	10.12.1954	30.4.1955 // 3.1962	stricken 1974
Tjandrasa (ex-S-391)	406		199 Yd, Komsomolsk-on-Amur, USSR	28.12.1955	30.6.1956	31.11.1956 // 12.1962	stricken 1974
Alugoro (ex-S-225)	407, later- 512		444 Marti Yd, Nikolayev, USSR	29.5.1954	16.3.1955	16.7.1955 // 3.1962	stricken 1974
Tjundamani (ex-S-292)	408	142	112 Zhdanov Yd, Gorkiy, USSR	10.5.1955	29.9.1955	31.3.1956 // 11.1962	stricken 1974
Wijajadanu (ex-S-239)	409		444 Nosenko Yd, Nikolayev, USSR	29.6.1955	14.12.1955	24.5.1956 // 12.1962	stricken 1974

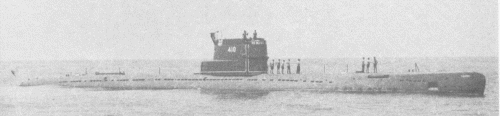

Pasopati (ex-S-290)	410	141	112 Zhdanov Yd, Gorkiy, USSR	15.4.1955	13.9.1955	3.2.1956 // 15.12.1962	stricken 11.1990
Hendradjala (ex-S-223)	411		444 Marti Yd, Nikolayev, USSR	10.6.1954	4.8.1954	30.6.1955 // 3.1962	stricken 1974
Bramastra (ex-S-236)	412		444 Nosenko Yd, Nikolayev, USSR	16.4.1955	30.9.1955	8.2.1956 // 12.1962	stricken 1981

Technical data

Displacement standard, t
Displacement normal, t	1045 / 1342
Length, m	76.0
Breadth, m	6.30
Draught, m	4.55
No of shafts	2
Machinery	2 37D diesels / 2 PG-101 electric motors
Power, h. p.	4000 / 2700
Max speed, kts	18.3 / 13.1
Fuel, t	diesel oil
Endurance, nm(kts)	8580(10) / 353(2)
Armament	6 - 533 TT (4 bow, 2 stern, 12 or 22 mines)
Electronic equipment	Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite
Complement	55
Diving depth operational, m	170

Standard scale images

Graphics

Project history

Former Soviet medium submarines of Project 613. Pasopati and Bramastra have been refitted and have received new batteries from UK.

Modernizations

None.

Naval service

No significant events.
