PULAU ROTE patrol minesweepers (1971-1973/1993-1995)





Pulau Rimau 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pulau Rote (ex-Wolgast) 721 245 Peenewerft, Wolgast, East Germany   13.4.1970 1.6.1971 // 22.10.1993 in service (2019)
Pulau Raas (ex-Hettstedt) 722 276 Peenewerft, Wolgast, East Germany   10.4.1973 9.8.1973 // 22.10.1993 in service (2019)
Pulau Romang (ex-Pritzwalk) 723 258 Peenewerft, Wolgast, East Germany   30.7.1971 22.12.1971 // 22.10.1993 in service (2019)
Pulau Rimau (ex-Bitterfeld) 724 261 Peenewerft, Wolgast, East Germany   30.12.1971 26.6.1972 // 22.10.1993 in service (2019)
Pulau Rondo (ex-Zerbst), 2008- Kelabang 725, 2008- 826 264 Peenewerft, Wolgast, East Germany   29.3.1972 7.8.1972 // 22.10.1993 patrol 2008, in service (2019)
Pulau Rusa (ex-Oranienburg) 726 266 Peenewerft, Wolgast, East Germany   7.6.1972 30.9.1972 // 2.2.1995 in service (2019)
Pulau Rangsang (ex-Jüterbog) 727 267 Peenewerft, Wolgast, East Germany   30.6.1972 1.11.1972 // 2.2.1995 in service (2019)
Pulau Raibu (ex-Sömmerda), 2008- Kala Hitam 728, 2008- 828 272 Peenewerft, Wolgast, East Germany   30.11.1972 7.4.1973 // 22.10.1993 patrol 2008, in service (2019)
Pulau Rempang (ex-Grimma) 729 279 Peenewerft, Wolgast, East Germany   5.7.1973 10.11.1973 // 22.10.1993 in service (2019)


Technical data


Displacement standard, t

436

Displacement normal, t

470

Length, m

56.8

Breadth, m

7.72

Draught, m

2.36

No of shafts

2

Machinery

2 40DM diesels

Power, h. p.

5000

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)

2000(15)

Armament

3 x 2 - 25/80 2M-3M, mines, SDGR/L USV, MSG-1S/SP USV, MSG-2/SP USV, HFG-13, HFG-24 magnetic, AT-2 acoustic minesweeping gear

Electronic equipment

TSR-333 radar, M-69 sonar

Complement

30



Standard scale images


<i>Pulau Rote </i>1995
Pulau Rote 1995


Graphics

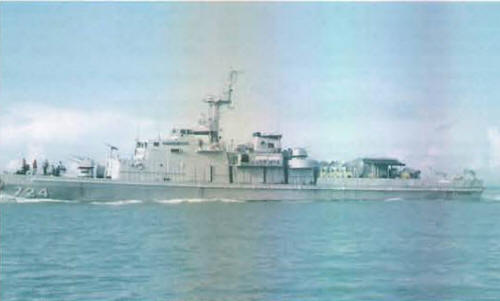

<i>Pulau Rimau </i>2004
Pulau Rimau 2004

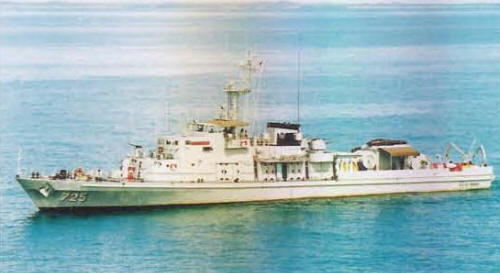

<i>Pulau Rondo </i>2004 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Pulau Rondo 2004 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former GDR Volksmarine minesweepers of Kondor-2 (89.2) type.

Modernizations

early 2000s, almost all: - (0 - 2) x 2 - 25/80; + 1 x 1 - 12.7/79

2008, Kelabang, Kala Hitam: - all mine countermeasures equipment

2009, Pulau Rote, Pulau Rempang; early 2010, Pulau Raas, Pulau Romang, Pulau Rimau, Pulau Rusa, Pulau Rangsang: all mine countermeasures equipment consisted of LMHS USV, DYAD magnetic minesweeping gear, AQS-17 sonar

early 2010s, Pulau Rusa: - 2 x 2 - 25/80; + 2 x 2 - 14.5/89

Naval service

No significant events.
