Pulau Rani 1980 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
Pulau Roon (ex-T-100, ex-T-816)	703	38	532 Yd, Kerch', USSR	18.9.1954	5.1.1955	31.3.1955 // 1.1963	deleted 1979	Project 254K
Pulau Rorbas (ex-T-101, ex-T-823)	704	51	532 Yd, Kerch', USSR	28.2.1955	14.7.1955	30.9.1955 // 1.1963	deleted 1983	Project 254K
Pulau Radja (ex-T-102, ex-T-824)	705	56	532 Yd, Kerch', USSR	18.3.1955	8.8.1955	30.10.1955 // 1.1963	deleted 1983	Project 254K
Pulau Rondo (ex-T-103, ex-T-826)	706	59	532 Yd, Kerch', USSR	7.5.1955	24.9.1955	30.11.1955 // 1.1963	deleted 1976	Project 254K

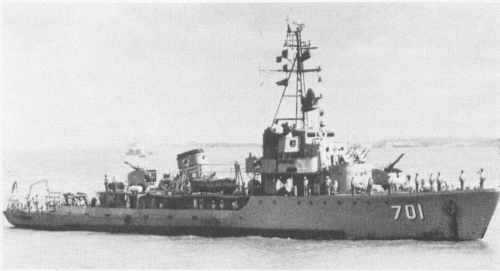

Pulau Rani (ex-T-105, ex-T-507)	701	914	363 Yd, Pontonnyy, USSR	26.7.1954	31.12.1954	30.6.1955 // 5.1964	deleted 1988	Project 254M
Pulau Ratevo (ex-T-104, ex-T-508)	702	915	363 Yd, Pontonnyy, USSR	14.8.1954	15.1.1955	2.8.1955 // 2.1964	deleted 1988	Project 254M

Technical data

Displacement standard, t	pr. 254K: 510 pr. 254M: 540
Displacement normal, t	pr. 254K: 577 pr. 254M: 600
Length, m	pr. 254K: 58.0 pr. 254M: 59.1
Breadth, m	8.50
Draught, m	pr. 254K: 2.28 pr. 254M: 2.33
No of shafts	2
Machinery	2 9D or 9DM diesels
Power, h. p.	2200
Max speed, kts	pr. 254K: 14 pr. 254M: 14.5
Fuel, t	diesel oil
Endurance, nm(kts)	pr. 254K: 3200(10) pr. 254M: 3500(10)
Armament	pr. 254K: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-2 mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear pr. 254M: 2 x 2 - 37/70 V-11/V-11M, 2 x 2 - 25/80 2M-3M, 2 x 2 - 14.5/89, 2 x 2 - 12.7/79, 2 DCT (10), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MKT-1 mechanical, TEM-52M magnetic, BGAT acoustic minesweeping gear
Electronic equipment	pr. 254K: Lin', Rym-K radars, Tamir-10 sonar pr. 254M: Lin', Rym-K radars, Tamir-11 sonar
Complement	pr. 254K: 68 pr. 254M: 77

Standard scale images

Graphics

Project history

Former Soviet ocean minesweepers of Projects 254K and 254M.

Modernizations

None.

Naval service

No significant events.
