TANJUNG KAMBANI troop transport (1982/2000)

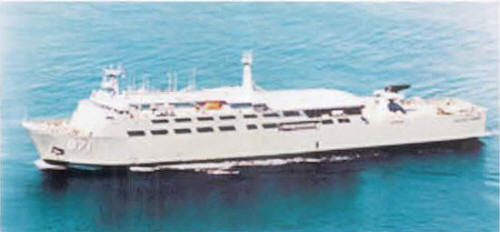

Tanjung Kambani 2007

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
Tanjung Kambani (ex-Dong Yang 6) 971   Sanuki SB, Takuma, Japan     1982 // 9.11.2000 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

7250

Length, m

114.5

Breadth, m

19.8

Draught, m

6.00

No of shafts

2

Machinery

2 Makita diesels

Power, h. p.

8200

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 2 - 25/80 2M-3M, 2 x 1 - 20/85 S.20, helicopter deck

Military load

4 LCVP, 1 infantry battalion

Electronic equipment

3x nav. radars

Complement


Standard scale images


<i>Tanjung Kambani </i>2010
Tanjung Kambani 2010


Graphics

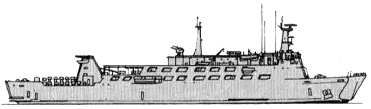

<i>Tanjung Kambani </i>2007
Tanjung Kambani 2007


Project history

Former Ro/Ro passenger ferry converted at Dae Sun Shipbuilding, Pusan, South Korea, and transferred to the navy in 2000. Fitted with a landing deck for two helicopters.

Modernizations

None.

Naval service

No significant events.
