RANTOS patrol craft (2015-16)
Rantos
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Rantos | P210 | PT Karimun Anugrah Segati | 10.2015 | 17.10.2015 | in service (2019) | ||
| Grantin | P211 | PT Karimun Anugrah Segati | 10.2015 | 2015 | in service (2019) | ||
| Pasatimpo | P212 | PT Karimun Anugrah Segati | 10.2015 | 2015 | in service (2019) | ||
| Salawaku | P213 | PT Karimun Anugrah Segati | 20.10.2014 | 13.12.2015 | 8.3.2016 | in service (2019) | |
| Damaru | P214 | PT Karimun Anugrah Segati | 2016 | in service (2019) | |||
| Jembio | P215 | PT Karimun Anugrah Segati | 2016 | in service (2019) | |||
| Ular Laut | 4805 | PT Palindo Marine, Tanjung Ucang | 2015 | in service (2019) | |||
| Belut Laut | 4806 | 2015 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 478 |
| Length, m | 39.5 pp 42.8 oa |
| Breadth, m | 7.80 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | |
| Electronic equipment | radar |
| Complement | 35 |
Graphics

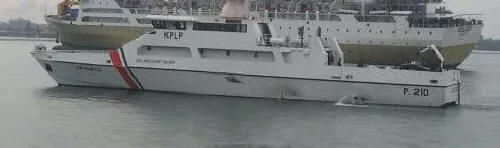

Rantos
Project history
Patrol craft. Steel hull, aluminium superstructure.
Modernizations
None.
Naval service
No significant events.
