KUPANG utility landing craft (1978-1980)

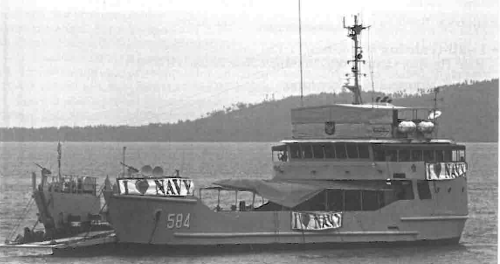

Nusa Utara 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Kupang | 582 | PT PAL, Surabaya | 3.11.1978 | stricken 5.2015 | |||
| Dili | 583 | PT PAL, Surabaya | 27.2.1979 | in service (2019) | |||
| Nusa Utara | 584 | PT PAL, Surabaya | 1980 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 400 |
| Length, m | 36.3 pp 42.9 oa |
| Breadth, m | 9.14 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 4 diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(11) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 200 t cargo |
| Electronic equipment | nav. radar |
| Complement | 17 |
Standard scale images
Kupang 2010
Graphics
Nusa Utara 2009
Project history
Design based on US LCU1610 class.
Modernizations
None.
Naval service
No significant events.
