ARDA DEDALI patrol ships (2005)
Alugara 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Arda Dedali | P113 | Niigata Engineering, Japan | 20.7.2004 | 1.9.2004 | 27.1.2005 | in service (2019) | |
| Alugara | P114 | PT PAL, Surabaya | 7.2005 | in service (2019) |
Technical data
| Displacement standard, t | 530 |
|---|---|
| Displacement full, t |
|
| Length, m | 60.0 |
| Breadth, m | 8.00 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000M60 diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(17) |
| Armament | none |
| Electronic equipment | radar |
| Complement | 51 |
Graphics

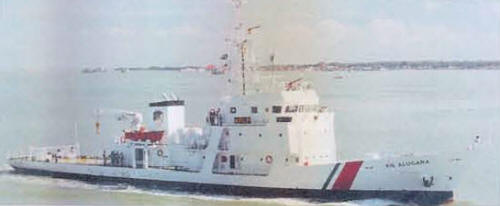

Alugara 2005
Project history
Intended primarily for disaster relief, firefighting, and pollution control duties. Have one firefighting monitor atop the bridge and one atop the mast platform. Alugara was built domestically with Japanese assistance.
Modernizations
None.
Naval service
No significant events.
