Lambung Mangkurat 1974 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Jos Sudarso (ex-Sarych)	351	1124	445 61 Kommunara Yd, Nikolayev, USSR	24.9.1952	31.3.1953	31.8.1954 // 1.1963	stricken 1986
Slamet Rijadi (ex-Puma)	352	1125	445 61 Kommunara Yd, Nikolayev, USSR	25.11.1952	29.4.1953	31.8.1954 // 1.1963	stricken 1973
Ngurah Rai (ex-Korsak)	353	1128	445 61 Kommunara Yd, Nikolayev, USSR	1.8.1953	29.4.1954	30.12.1954 // 1.1963	stricken 1974
Monginsidi (ex-Grizon)	354	1131	445 61 Kommunara Yd, Nikolayev, USSR	15.4.1954	29.11.1954	30.6.1955 // 1.1963	stricken 1971

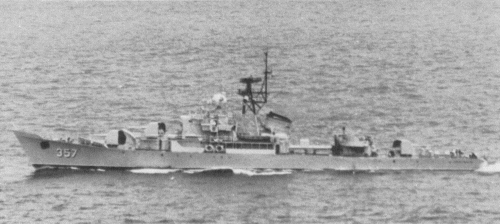

Lambung Mangkurat (ex-Aist)	357	43	199 Yd, Komsomolsk-on-Amur, USSR	25.12.1952	25.8.1953	27.8.1954 // 4.1965	stricken 1986
Hang Tuah (ex-Zubr)	358	41	199 Yd, Komsomolsk-on-Amur, USSR	29.8.1952	9.7.1953	31.5.1954 // 4.1965	stricken 1971
Kakiali (ex-Bizon)	359	42	199 Yd, Komsomolsk-on-Amur, USSR	4.10.1952	9.7.1953	30.6.1954 // 4.1965	stricken 1985
Nuku (ex-Pelikan)	360	45	199 Yd, Komsomolsk-on-Amur, USSR	1.8.1953	18.4.1954	30.11.1954 // 2.1964	stricken 1971

Technical data

Displacement standard, t	1050
Displacement normal, t	1337
Length, m	90.9
Breadth, m	10.2
Draught, m	2.90
No of shafts	2
Machinery	2 TV-9 geared steam turbines sets, 2 KVG-57/28 boilers
Power, h. p.	20000
Max speed, kts	29
Fuel, t	oil
Endurance, nm(kts)	1000(14.5)
Armament	3 x 1 - 100/56 B-34USMA, 2 x 2 - 37/70 V-11M, 1 x 3 - 533 TT, 2 x 16 RBU-2500 Smerch ASWRL, 4 DCT, 2 DCR
Electronic equipment	Fut-N, Neptun-M, Don, Yakor'-M radars, Pegas-3M sonar, Bizan'-4 ECM suite
Complement	168

Standard scale images

Graphics

Project history

Former Soviet light frigates of Project 50.

Modernizations

None.

Naval service

No significant events.
