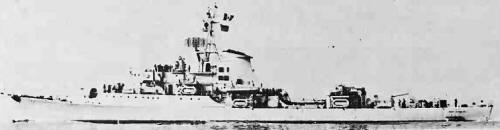

Imam Bondjol Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Imam Bondjol	355, 1960s- 250	276	Ansaldo, Livorno, Italy	8.1.1956	5.5.1956	19.5.1958	stricken 1978
Untung Surapati	356, 1960s- 251	274	Ansaldo, Livorno, Italy	8.1.1956	5.5.1956	28.5.1958	stricken 1978

Technical data

Displacement standard, t	1300
Displacement full, t	1500
Length, m	99.1
Breadth, m	10.8
Draught, m	3.40 max
No of shafts	2
Machinery	2 sets Ansaldo-Parsons geared steam turbines, 2 Ansaldo-Foster Wheeler boilers
Power, h. p.	24000
Max speed, kts	34
Fuel, t	oil 350
Endurance, nm(kts)	3500(15)
Armament	2 x 2 - 102/45 Mk 19, 3 x 2 - 40/70 Breda-Bofors type 64, 4 x 2 - 20/70 Mk 24, 1 x 3 - 533 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 4 DCT, 2 DCR
Electronic equipment	SPS-6, SPS-10, SPG-34 radars, SQS-4 sonar
Complement	162

Standard scale images

Graphics

Project history

Two fast frigates of the type designed and built earlier for Venezuela as Almirante Clemente class.

Modernizations

None.

Naval service

No significant events.
