HAJAR DEWANTARA training frigate (1981)





Hajar Dewantara 1992 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hajar Dewantara 364 509 Uljanik, Split, Yugoslavia 11.5.1979 11.10.1980 20.8.1981 in service (2019)


Technical data


Displacement standard, t

1850

Displacement full, t

2050

Length, m

92.0 wl 96.7 oa

Breadth, m

11.2

Draught, m

3.55 hull 4.50 max

No of shafts

2

Machinery

CODOG: 1 Rolls-Royce Olympus TM3B gas turbine / 2 MTU 16V956TB91 diesels

Power, h. p.

25000 / 7500

Max speed, kts

27

Fuel, t

gas turbine oil / diesel oil 338

Endurance, nm(kts)4000(20)
Armament

4 x 1 MM38 Exocet SSM (4 MM38), 1 x 1 - 57/70 SAK57 Mk 1, 2 x 1 - 20/85 S.20, 2 - 533 TT (2), 1 helicopter (NBO-105)

Military load2 LCVP
Electronic equipment

Decca 1229, WM-28 radars, PHS-32 sonar, Susie I ECM suite, SEWACO CCS

Complement

91 + 14 instructors + 100 students



Standard scale images

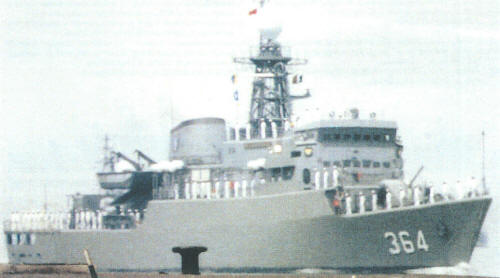

<i>Hajar Dewantara </i>2000
Hajar Dewantara 2000


Graphics

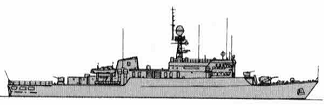

<i>Hajar Dewantara </i>1992 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Hajar Dewantara 1992 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Ordered 14 March 1978 from Yugoslavia, where the hull was built and engines fitted. Armament and electronics were fitted in the Netherlands and Indonesia. In peacetime used for training and troop transport. SUT wire-guided torpedoes are launched from the TT directly aft from the stern.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
