TATIHU patrol craft (2017-2018)
Torani 2017
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Tatihu | 853 | PT Palindo, Batam City | 23.9.2016 | 11.1.2017 | in service (2019) | ||
| Layaran | 854 | PT Palindo, Batam City | 23.9.2016 | 11.1.2017 | in service (2019) | ||
| Madidihang | 855 | PT Palindo, Batam City | 23.9.2016 | 11.1.2017 | in service (2019) | ||
| Kurau | 856 | PT Caputra Mitra Sejati, Serang | 7.3.2017 | 6.7.2017 | in service (2019) | ||
| Torani | 860 | PT Karimun Anugerah Sejati, Batam City | 30.3.2017 | 2017 | in service (2019) | ||
| Lepu | 861 | PT Karimun Anugerah Sejati, Batam City | 30.3.2017 | 2017 | in service (2019) | ||
| Albakora | 867 | PT Caputra Mitra Sejati, Serang | 26.3.2018 | 2018 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 250 |
| Length, m | 45.5 |
| Breadth, m | 7.90 |
| Draught, m | 4.25 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 4960 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1600 |
| Armament | 1 x 1 - 30/82 Marlin WS, 2 x 1 - 12.7/90 |
| Electronic equipment | nav. radar |
| Complement | 36 |
Graphics

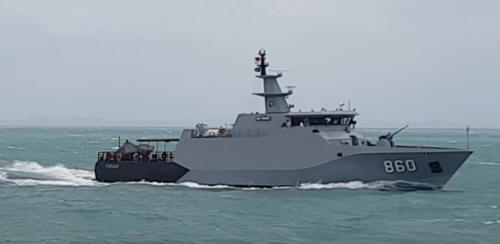

Torani 2017
Project history
PC-40M design.
Modernizations
None.
Naval service
No significant events.
