ANDAU large patrol boats (1988-1989)

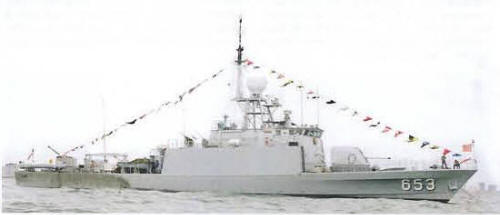

Ajak 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Andau | 650 | Lürssen, Vegesack, Germany // PT PAL, Surabaya | 15.4.1986 | 4/1988 | deleted 2005 | ||
| Singa | 651 | Lürssen, Vegesack, Germany // PT PAL, Surabaya | 1.10.1986 | 8/1988 | in service (2019) | ||
| Tongkak | 652 | Lürssen, Vegesack, Germany // PT PAL, Surabaya | 4.4.1989 | deleted 2005 | |||
| Ajak | 653 | Lürssen, Vegesack, Germany // PT PAL, Surabaya | 4.4.1989 | in service (2019) |
Technical data
| Displacement standard, t | 342 |
|---|---|
| Displacement full, t | 423 |
| Length, m | 54.4 wl 58.1 oa |
| Breadth, m | 7.62 |
| Draught, m | 2.73 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V956 TB92 diesels |
| Power, h. p. | 8260 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil 110 |
| Endurance, nm(kts) | 6100(15) |
| Armament | 1 x 1 - 57/70 Bofors SAK Mk 2, 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 - 533 TT |
| Electronic equipment | Decca 1226, WM22 radars, LIOD e/o director, PHS-32 sonar, DR-2000S3, Telegon-8 ECM suites, Dagaie decoy RL |
| Complement | 53 |
Standard scale images
Singa 2000
Graphics
Ajak 1998
Project history
Lürssen PB57 variant II (ASW) craft. 533m TT carry SUT wire-guided torpedoes.
Modernizations
None.
Naval service
No significant events.
