MANDAU fast attack craft (missile) (1979-1980)

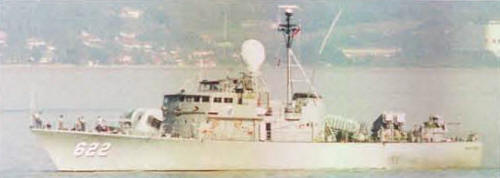

Rencong 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Mandau | 621 | Korea-Tacoma, Masan, South Korea | 5.1977 | 20.7.1979 | in service (2019) | ||
| Rencong | 622 | Korea-Tacoma, Masan, South Korea | 20.7.1979 | fire 11.9.2018 | |||
| Badik | 623 | Korea-Tacoma, Masan, South Korea | 2/1980 | in service (2019) | |||
| Keris | 624 | Korea-Tacoma, Masan, South Korea | 2/1980 | in service (2019) |
Technical data
| Displacement standard, t | 250 |
|---|---|
| Displacement full, t | 290 |
| Length, m | 50.3 pp 53.7 oa |
| Breadth, m | 8.00 |
| Draught, m | 1.63 hull 2.00 max |
| No of shafts | 2 |
| Machinery | CODOG: 1 General Electric-Fiat LM-2500 gas turbine / 2 MTU 12V331TC81 diesels |
| Power, h. p. | 25000 / 2240 |
| Max speed, kts | 41 |
| Fuel, t | diesel oil / gas turbine oil |
| Endurance, nm(kts) | 2600(14) |
| Armament | 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 57/70 Bofors SAK Mk 1, 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20 |
| Electronic equipment | 621, 622: Decca AC1229, WM28 radars, NA-18 e/o director 623, 624: Decca AC1229, WM28 radars, NA-18 e/o director, DR2000 ECM suite |
| Complement | 43 |
Standard scale images
Rencong 2000
Graphics
Rencong 1998
Project history
PSK Mk 5 design. Modified US Asheville class.
Modernizations
None.
Naval service
Rencong 11.9.2018 was sunk after accidental fire in engine room off Sorong.
