KAKAP large patrol craft (1988-1990)

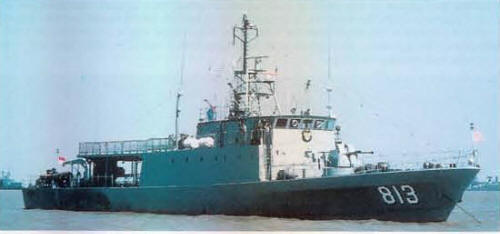

Tongkol 2001

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Kakap 811   Lürssen, Vegesack, Germany // PT PAL, Surabaya     29.6.1988 in service (2019)
Kerapu 812   Lürssen, Vegesack, Germany // PT PAL, Surabaya     5.4.1989 in service (2019)
Tongkol 813   PT PAL, Surabaya     26.2.1989 in service (2019)
Bervang, 1995- Barakuda 814, early 2010s- 633   PT PAL, Surabaya     1/1990 in service (2019)


Technical data


Displacement standard, t342
Displacement full, t

425
Length, m

54.4 wl 58.1 oa
Breadth, m

7.62
Draught, m

2.73 propellers
No of shafts

2
Machinery

2 MTU 16V956 TB92 diesels
Power, h. p.

8260
Max speed, kts

28
Fuel, t

diesel oil 110
Endurance, nm(kts)6100(15)
Armament

1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 x 1 - 12.7/90, helicopter deck
Electronic equipment

Decca 2459 radar, DR-2000S3 ECM suite
Complement

40


Standard scale images


<i>Kakap </i>2000
Kakap 2000


Graphics


<i>Tongkol </i>2001
Tongkol 2001


Project history

Lürssen PB57 variant I (SAR) craft. These ships ordered from West Germany in 1982 are SAR, transport and patrol version of the combat vessels of the 'FPB 57 Nav I' and II rype. All built by PT PAL SY, Surabaya with the first two shipped from Lürssen and the second pair assembled by PT PAL. Have raised 13.0x7.1m helicopter deck at the stern for NBO-105 helcopter. All fitted with 70m range water cannon of 294m³/h capacity for fire fighting. Two rescue launches are stowed aft. Originally destined for Maritime Security Agency. As transports can carry two rifle platoons.

Modernizations

1995, Barakuda: + type 1007 radar

2/2001, Tongkol: two small RIBs were replaced by one large; + 2 x 1 - 14.5/89

Naval service

No significant events.
