BC60001 patrol ships (2015)
BC60001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| BC60001 | PT Daya Radar Utama, Jakarta | 10.2015 | 2015 | in service (2019) | |||
| BC60002 | PT Daya Radar Utama, Jakarta | 10.2015 | 2015 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 54.9 pp 60.0 oa |
| Breadth, m | 8.50 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 M73L diesels |
| Power, h. p. | 7720 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300 |
| Armament | 2 x 1 - 12.7/79 |
| Electronic equipment | radar |
| Complement | 31 |
Graphics

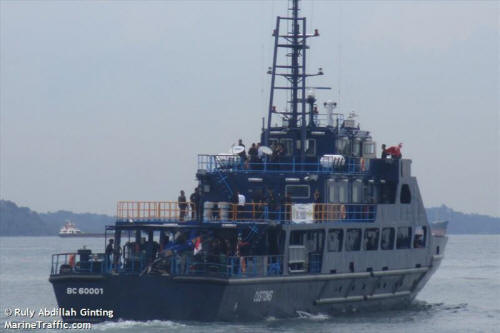

BC60001
Project history
Custom. Have water cannons and RIB.
Modernizations
None.
Naval service
No significant events.
