BT401 customs patrol boats (1960-1962)
similar BC5001
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BT401-404, early 1990s- BC401-404 BT501-504, early 1990s- BC501-504 BT601-604, early 1990s- BC601-604 BT701-704, early 1990s- BC701-704 BT801-804, early 1990s- BC801-804 BT901-904, early 1990s- BC901-904 |
Lürssen Indonesia: BT401-404, 501-504, 601-604, 701-704, 801-804, 901-904 |
1960-1962: BT401-404, 501-504, 601-604, 701-704, 801-804, 901-904 |
none |
none |
late 1990s: BC401-404 late 2010s: BC501-504, 601-604, 701-704, 801-804, 901-904 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 68 |
| Length, m | 28.0 |
| Breadth, m | 5.40 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 19 |
Graphics

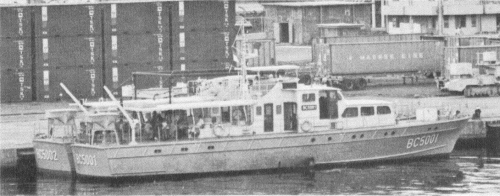

similar BC5001
Project history
Lürssen designed patrol boats.
Modernizations
None.
Naval service
No significant events.
