BC1001 coastal patrol craft (1975)
BC1002 1976
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BC1001-1003 |
CN de l'Estérel, Cannes, France: BC1001-1003 |
1975: BC1001-1003 |
none |
none |
late 1990s: BC1001-1003 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 56 |
| Length, m | 26.6 wl 28.0 oa |
| Breadth, m | 5.30 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC81 diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil 10 |
| Endurance, nm(kts) | 750(15) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 15 |
Graphics

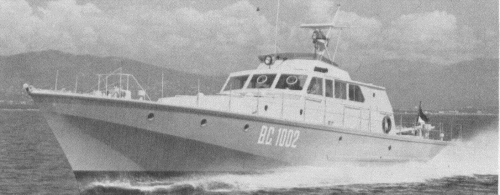

BC1002 1976
Project history
Patrol boats.
Modernizations
None.
Naval service
No significant events.
