KATULA large patrol craft (1950-1955/1958-1964)
Pandrong 1980 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Katula (ex-MPK-468, ex-BO-468) | 301, 1975- 811 | 487 | 340 Yd, Zelenodolsk, USSR | 10.1954 | 18.12.1954 | 7.1955 // 11.1958 | stricken 1976 |
| Landjuru (ex-MPK-424, ex-BO-424) | 302 | 488 | 340 Yd, Zelenodolsk, USSR | 6.1953 | 17.8.1953 | 12.1953 // 12.1958 | stricken 1975 |
| Lapai (ex-MPK-426, ex-BO-426) | 303 | 489 | 340 Yd, Zelenodolsk, USSR | 7.1953 | 4.9.1953 | 12.1953 // 12.1958 | stricken 1975 |
| Lumba-Lumba (ex-MPK-427, ex-BO-427) | 304 | 495 | 340 Yd, Zelenodolsk, USSR | 7.1953 | 16.9.1953 | 12.1953 // 12.1958 | stricken 1975 |
| Mandidhang (ex-MPK-429, ex-BO-429) | 305 | 496 | 340 Yd, Zelenodolsk, USSR | 8.1953 | 1.10.1953 | 12.1953 // 12.1958 | stricken 1975 |
| Momae (ex-MPK-292, ex-BO-292) | 306, 1975- 812 | 501 | 340 Yd, Zelenodolsk, USSR | 6.1950 | 13.8.1950 | 10.1950 // 1.1963 | stricken 1976 |
| Tjutjut (ex-MPK-293, ex-BO-293) | 307 | 543 | 340 Yd, Zelenodolsk, USSR | 6.1950 | 13.8.1950 | 10.1950 // 1.1963 | stricken 1975 |
| Tongkol (ex-MPK-294, ex-BO-294) | 308, 1975- 813 | 585 | 340 Yd, Zelenodolsk, USSR | 7.1950 | 20.8.1950 | 11.1950 // 1.1963 | stricken 1975 |
| Pandrong (ex-MPK-300, ex-BO-300) | 309, 1975- 814 | 587 | 340 Yd, Zelenodolsk, USSR | 9.1950 | 7.10.1950 | 4.1951 // 1.1963 | stricken 1986 |
| Sura (ex-MPK-334, ex-BO-334) | 310, 1975- 815 | 588 | 340 Yd, Zelenodolsk, USSR | 9.1950 | 15.10.1950 | 5.1951 // 1.1963 | stricken 1986 |
| Kakap (ex-MPK-382, ex-BO-382) | 311, 1975- 816 | 590 | 340 Yd, Zelenodolsk, USSR | 3.1952 | 28.6.1952 | 10.1952 // 1.1963 | stricken 1981 |
| Barakuda (ex-MPK-339, ex-BO-339) | 312, 1975- 817 | 904 | 340 Yd, Zelenodolsk, USSR | 11.1950 | 24.1.1951 | 6.1951 // 6.1964 | stricken 1986 |
| Palu (ex-MPK-..., ex-BO-...) | 313, 1975- 818 | 340 Yd, Zelenodolsk, USSR | 1950s // 1964 | stricken 1986 | |||
| Tohok (ex-MPK-..., ex-BO-...) | 314, 1975- 829 | 340 Yd, Zelenodolsk, USSR | 1950s // 1964 | stricken 1976 |
Technical data
| Displacement standard, t | 289 |
|---|---|
| Displacement full, t | 325 |
| Length, m | 49.5 wl 51.7 oa |
| Breadth, m | 6.60 |
| Draught, m | 2.19 |
| No of shafts | 3 |
| Machinery | 3 9D diesels |
| Power, h. p. | 3300 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil 18 |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 85/52 90K, 2 x 1 - 37/73 70K, 2 x 2 - 12.7/79, 2 DCT, 2 DCR (60), 18 mines |
| Electronic equipment | Gyuys or Zarnitsa radar, Tamir-9 sonar |
| Complement | 54 |
Standard scale images
Barakuda 1965
Graphics

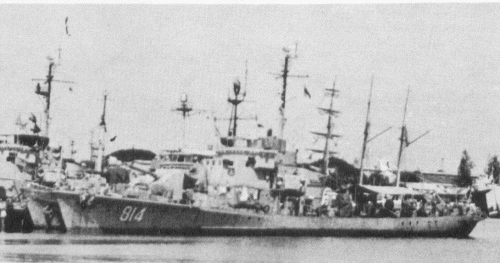

Pandrong 1980 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Former Soviet Project 122bis submarine chasers. It is unknown, which specific Indonesian names corresponded to specific Soviet ships. Also two names of ex-Soviet ships are unknown.
Modernizations
None.
Naval service
No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
