JALASHWA landing platform dock (1971/2007)

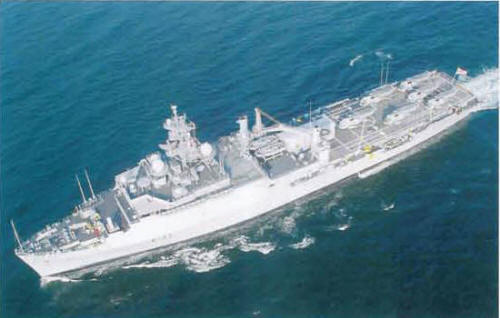

Jalashwa 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| जलश्वा [Jalashwa] (ex-Trenton) | L41 | Lockheed, Seattle, USA | 8.8.1966 | 3.8.1968 | 6.3.1971 // 22.6.2007 | in service (2019) |
Technical data
| Displacement standard, t | 9130 |
|---|---|
| Displacement full, t | 16905 |
| Length, m | 173.4 |
| Breadth, m | 25.6 wl 30.5 oa |
| Draught, m | 7.20 |
| No of shafts | 2 |
| Machinery | 2 sets De Laval geared steam turbines, 2 Foster Wheeler boilers |
| Power, h. p. | 24000 |
| Max speed, kts | 21 |
| Fuel, t | oil |
| Endurance, nm(kts) | 7700(20) |
| Armament | 2 x 1 - 25/75 Mk 38, 2 x 6 - 20/76 Mk 15 Phalanx, 8 x 1 - 12.7/90, 4 helicopters (Sea King) |
| Military load | 788 troops, 4 LCM(8) |
| Electronic equipment | SPS-64(v)9, SPS-67(v)1, SPS-40E, 2x Mk 90 radars, SLQ-32(v)1 ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy |
| Complement | 329 |
Graphics
Jalashwa 2007
Project history
Former USN Austin class ship. 1400m² flight deck for 4 Sea King helicopters and hangar for one small helicopter. 51.2x15.2m well deck accommodates 4 LCM(8) craft, also transferred by USN in January 2007. 1380m² parking space for vehicles, 1 30t crane.
Modernizations
None.
Naval service
No significant events.
