TARAGIRI frigates (1980-1981)





Taragiri 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
तरागिरि [Taragiri] F41   Mazagon Docks, Bombay 1974 25.10.1976 16.5.1980 stricken 6.2013
विन्ध्यगिरि [Vindhyagiri] F42   Mazagon Docks, Bombay 1976 12.11.1977 8.7.1981 collision 30.1.2011


Technical data


Displacement standard, t

2970

Displacement full, t

3250

Length, m

113.4

Breadth, m

13.1

Draught, m

5.50 max

No of shafts

2

Machinery

2 Babcock & Wilcox boilers, 2 Bhopal geared steam turbines sets

Power, h. p.

30000

Max speed, kts

30

Fuel, t

oil 500

Endurance, nm(kts)

4500(12)

Armament

2 x 4 Sea Cat M-4 SAM (32 Sea Cat), 1 x 2 - 120/45 Mk 6, 2 x 1 - 20/70 Mk 10, 2 x 3 - 324 ILAS-3 TT (A184), 1 x 2 - 375 Bofors ASWRL, 1 helicopter (Sea King)

Electronic equipment

Decca 1226, ZW-06, RALW-02, M44, 2x M45 radars, Diodon sonar, UA-8/9, Cutlass ECM suites

Complement

410



Standard scale images


<i>Taragiri </i>1990

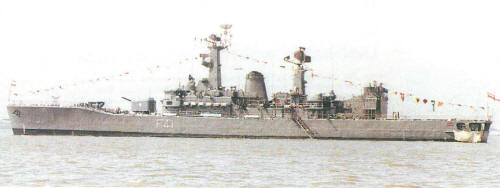

Taragiri 1990


Graphics


<i>Taragiri </i>2001

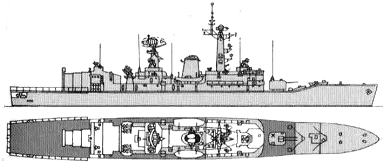

Taragiri 2001


Project history

Modified Nilgiri with larger helicopter (Sea King) in the telescopic hangar and TTs and Bofors ASWRL on forecastle instead of the Limbo. Also they received new sonar and ECM.

Modernizations

late 1980s, both: + G738 torpedo decoy

early 1990s, both: - UA8/9, type 667 ECM suites; + Ajanta-P ECM suite

late 1990s, both: - 2 x 4 Sea Cat GWS22 SAM, 2x M45 radars; + 2 x 2 - 30/71 AK-230

Naval service

Vindhyagiri collided 30.1.2011 with a m/v Nord Lake  at Mumbai harbour, fired and sank. She was salvaged 15.2.2011 but never repaired and officially stricken 14.6.2012.
