NAVYPEDIA


Rana 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
राजपूत [Rajput] (ex-Надёжный [Nadyozhnyy])	D51	2201	61 Kommunar Yd, Nikolayev, USSR	11.9.1976	17.9.1977	30.11.1979 // 30.9.1980	in service (2019)
राणा [Rana](ex-Губительный [Gubitelnyy])	D52	2202	61 Kommunar Yd, Nikolayev, USSR	29.11.1976	27.9.1978	30.9.1981 // 28.6.1982	in service (2019)
रणजीत [Ranjit] (ex-Ловкий [Lovkiy])	D53	2203	61 Kommunar Yd, Nikolayev, USSR	29.6.1977	16.6.1979	20.7.1983 // 24.11.1983	stricken 5.2019
रणवीर [Ranvir] (ex-Твёрдый [Tviordyy])	D54	2204	61 Kommunar Yd, Nikolayev, USSR	24.10.1981	12.3.1983	30.12.1985 // 28.10.1986	in service (2019)
रणविजय [Ranvijay] (ex-Толковый [Tolkovyy])	D55	2205	61 Kommunar Yd, Nikolayev, USSR	19.3.1982	1.2.1986	15.10.1987 // 15.1.1988	in service (2019)

Technical data

Displacement standard, t	D51-53: 4025 D54, 55: 4185
Displacement full, t	D51-53: 4905 D54, 55: 5055
Length, m	146.2
Breadth, m	15.8
Draught, m	D51-53: 4.85 hull 6.83 max D54, 55: 4.87 hull 6.85 max
No of shafts	2
Machinery	2 M-3EE gas turbine units
Power, h. p.	72000
Max speed, kts	33
Fuel, t	gas turbine oil
Endurance, nm(kts)	3500(18)
Armament	D51-53: 4 x 1 Termit SSM (4 P-20), 2 x 2 M-1 Volna-M SAM (32 V-601(4K91)), 1 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 1 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-25) D54, 55: 4 x 1 Termit-M SSM (4 P-20M), 2 x 2 M-1 Volna-P SAM (32 V-601P), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-28)
Electronic equipment	D51-53: MR-500 Kliver, MR-310 Angara-A, 2x Yatagan, MR-105 Turel', 2x MR-104 Rys', 2x Volga radars, MGK-335 Platina sonar, Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM suites, 4x PK-16 decoy RL, Planshet-61ME CCS D54, 55: MR-500 Kliver, MR-310 Angara-A, 2x Yatagan II, MR-105 Turel', 2x MR-123 Vympel, 2x Volga radars, MGK-335 Platina sonar, MP-401E Start ECM suite, 4x PK-16 decoy RL, Planshet-61ME CCS
Complement	D51-53: 312 D54, 55: 315

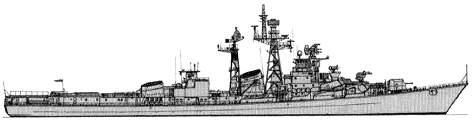

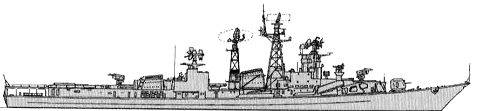

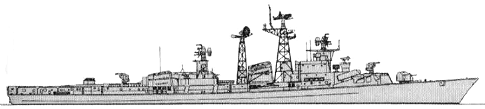

Standard scale images

Graphics

Project history

Soviet project 61ME, export version of project 61M. New construction and unlike in modified Soviet units the Termit SSM are mounted forward. The aft 76mm turret has been deleted to provide a helicopter hangar reached by a ramp.

Modernizations

1990s, all: + MG-325 Vega sonar

2003, Rajput: - 4 x 1 Termit SSM, Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM; + 2 x 2 BrahMos SSM (4 BrahMos), Ajanta ECM

2004-2006, Ranvijay, Ranvir: - Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM; + Ajanta ECM

2006, Ranvijay; 2008, Ranvir: - 1 x 2 M-1 Volna-P SAM, 2 x 6 - 30/54, MR-310 Angara-A, Yatagan II, MR-123 Vympel radars, MGK-335 Platina sonar; + 1 x 8 BrahMos SSM (VLS, 8 BrahMos), 2 x 8 Barak-1 SAM (VLS, 16 Barak-1), EL/M-2238, 2 x EL/M-2221 radars, HUMSA sonar

early 2010s, Rana, Ranjit: - 2 x MR-104 Rys' radars

early 2010s, all: - 2 x Volga radars; + 2x Rashmi radars, TQN-2 ECM suite

early 2010s, Rana, Ranjit, Ranvir, Ranvijay: - MR-500 Kliver radar; + RAWL-02 radar

late 2010s, Ranvir, Ranvijay: - Planshet-61ME CCS; + CMS-SNF CCS

2015, Ranvir: - 1 x 2 - 76/59; + 1 x 1 - 76/62 OTO-Melara Compact SR

Naval service

No significant events.
