DELHI destroyers (1997-2001)





Mysore 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
मैसूर [Mysore] D60   Mazagon Docks, Mumbai 2.2.1991 4.6.1993 2.6.1999 in service (2019)
दिल्ली [Delhi] D61   Mazagon Docks, Mumbai 14.11.1987 1.2.1991 15.11.1997 in service (2019)
मुम्बई [Mumbai] (ex-Bombay) D62   Mazagon Docks, Mumbai 14.12.1992 20.3.1995 22.1.2001 in service (2019)


Technical data


Displacement standard, t

5000

Displacement full, t

6800

Length, m

163.0

Breadth, m

17.4

Draught, m

6.50

No of shafts

2

Machinery

COGAG: 4 Zoria-Mashproekt DT-59 gas turbines

Power, h. p.

82820

Max speed, kts

30

Fuel, t

gas turbine oil

Endurance, nm(kts)

5000(18)

Armament

4 x 4 Uran SSM (16 3M24), 2 x 1 Kashmir SAM (48 Kashmir), 1 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 4 x 1 - 12.7/79, 2 x 2 - 533 TT (4 SET-65E or 53-65), 2 x 12 RBU-6000 ASWRL, 2 helicopters (Sea King Mk 42B or Dhruv)

Electronic equipment

3x MR-212/201 Vaygach-U, MR-755M2 Fregat-MA, Apurna, MR-184 Lev, 6x OP-3 Orekh, RAWL-02, 2x MR-123 Vympel radars, HUMVAD HUS-003, 15-750 sonars, Ajanta, MBAT or MMT ECM suites, 4x PK-2 decoy RL, Shikari CCS

Complement

360



Standard scale images

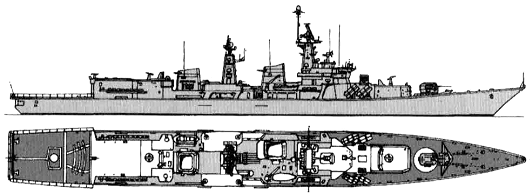

<i>Delhi </i>2000
Delhi 2000

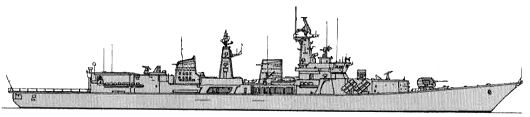

<i>Mysore </i>2010
Mysore 2010


Graphics

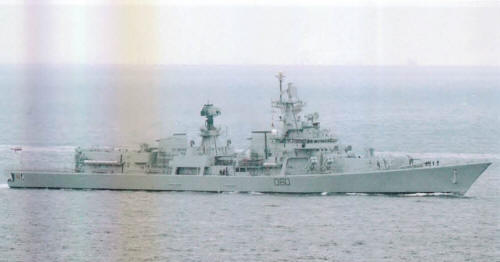

<i>Mysore </i>2007
Mysore 2007


Project history

Indian Project 15. Bombay was renamed early in 2000.

Hull lines said to have been derived from the project 61ME. Have nonretracting fin stabilizers. Helicopter landing aid and deck-traversing equipment is installed. An NBC water washdown system is installed, and the ships are divided internally into six independent citadels with independent power and communications systems. Mysore has enhanced air-conditioning capability to prevent overheating of electronic components. All are equipped to serve as flagships. Soviet and European weapons and European-designed/Indian-improved-and-manufactured electronics were employed. The Russian Shtil SAM system is known as the Kashmir in Indian service. The launch system for the antiship missiles is the Russian 3R60UE system.

Modernizations

2003, Delhi; 2005, Mysore: - 2 x 6 - 30/54, 2x MR-123 Vympel radars; + 2 x 16 Barak-1 SAM (VLS, 32 Barak-1), 2x EL/M-2221 radars

early 2010s, Delhi, Mumbai: - HUMVAD HUS-003, 15-750 sonars; + HUMSA, ATAS sonars

Naval service

No significant events.
