JIJA BAI patrol craft (1983-1985)

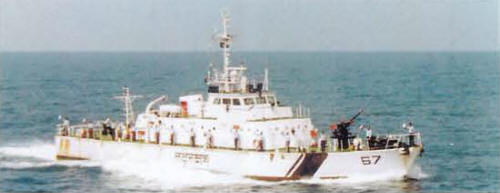

Rani Jindan 1996.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
जीजा बाई [Jija Bai] 64   Sumidagawa, Tokyo, Japan     22.2.1984 stricken 6.2011
चाँद बीबी [Chand Bibi] 65   Garden Reach, Calcutta     22.2.1984 stricken 1.2012
कित्तूर चिन्नमा [Kittur Chinnama] 66   Garden Reach, Calcutta     21.5.1983 stricken 6.2011
रानी जिन्दां [Rani Jindan] 67   Garden Reach, Calcutta     21.10.1983 stricken 2.2012
हाब्बाह खातून [Habbah Khatun] 68   Garden Reach, Calcutta     27.4.1985 stricken 2.2012
रमा देवी [Rama Devi] 69   Garden Reach, Calcutta     3.8.1985 stricken 1.2012
अव्वैयार [Avvaiyar] 70   Garden Reach, Calcutta     19.10.1985 stricken 2.2012


Technical data


Displacement standard, t

181

Displacement full, t273
Length, m

41.1 pp 44.0 oa

Breadth, m

7.40

Draught, m

1.50 hull

No of shafts

2

Machinery

2 MTU 12V538 TB82 diesels

Power, h. p.5940
Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)

2375(14)

Armament

1 x 1 - 40/60 Mk 3, 2 x 1 - 7.6/90

Electronic equipment

Decca 1226 radar

Complement34


Graphics


<i>Rani Jindan </i>1996.
Rani Jindan 1996.


Project history

Type 956.

Modernizations

None.

Naval service

No significant events.
