PM1

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
PM1 PM2 PN11 (ex-PM3), later- PN31, 1950s- PN34 PM4 - 6	Danubius, Budapest: PM1, 2, 4 - 6; PN11	1940: PM1 1949: PN11	PM2, 4 - 6: sunk incomplete late 1944 (two were completed in 1956 as PN31 and PN32) PM1 (captured by USA 5.1945)	none	1973: PN34

Technical data

Displacement standard, t
Displacement full, t	38
Length, m	28.0
Breadth, m	3.70
Draught, m	PM1: 0.60 PN11: 1.10
No of shafts	PM1: 3 PN11: 2
Machinery	PM1: 3 Junkers diesels PN11: 2 Lang MP35 diesels
Power, h. p.	PM1: 480 PN11: 420
Max speed, kts	PM1: 20.5 PN11: 13.5
Fuel, t	diesel oil
Endurance, nm(kts)
Armour, mm	PM1: belt: 13, deck: 20, turrets: 40, CT: 40 PN11: belt, deck, CT: up to 30
Armament	PM1: 2 x (1 - 40/43 Škoda A17, 2 - 8.3/83), 2 x 1 - 8.3/83 PN11: 2 x 1 - 37/73 70K, 1 x 1 - 82/11 mortar
Complement	16

Standard scale images

Graphics

Project history

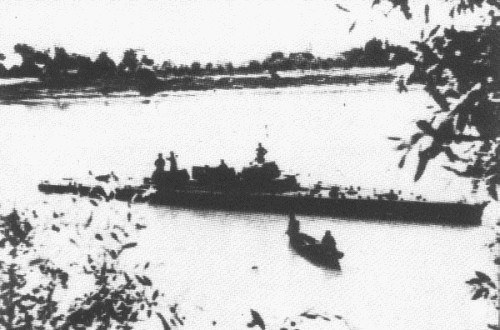

Fast shallow-draught armoured motor gunboats, projected and built by Hanz Danubius at Budapest. They were armed by 40mm/45 tank guns in turrets. In each of turrets also two 8mm MGs were placed, two more MGs were installed on movable mounts in aft part of deck house and could fire through one of three loophopes. The armoured citadel defended deck house, magazines and machinery. Complexity of manoeuvring on high speed (when the bow too strongly went out water, covering the view from low deck house) appeared the basic lack of the project.  Building of 5 more boats was begun in 1942-1943, by late 1944 they remained incomplete, and already launched hulls were scuttled. Only in 1949 salvaged PM3 was commissioned as PN11 in significantly altered kind and Soviet armament. Two more boats were salvaged in the late forties and completed in 1956 under the changed project as PN31 and PN32. All three were written off in 1973.

Ship protection

Bullet-proof protection of the hull and turrets from Turán I tanks.

Modernizations

None.

Naval service

Lead PM1 was 25.11.1944 hard damaged by Soviet artillery at Cepel. In May, 1945 she surrendered to Americans. Till now her hull is used as a hulk at Passau.
