SEA HORSE patrol boat (1958, 1958/1978)
Sea Horse 1979
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL4 Sea Horse PL5 Sea Charger |
Thornycroft, Singapore: PL4, 5 |
1958: PL4 1958 // 1978: PL5 |
None |
None |
1985: PL4, 5 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 72 |
| Length, m | 23.8 |
| Breadth, m | 4.60 |
| Draught, m | 1.40 |
| No of shafts | 3 |
| Machinery | 3 Cummins diesels |
| Power, h. p. | 705 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(15) |
| Armament | PL4: 1 x 1 - 12.7/90 PL5: small arms |
| Electronic equipment | radar |
| Complement | 21 |
Graphics

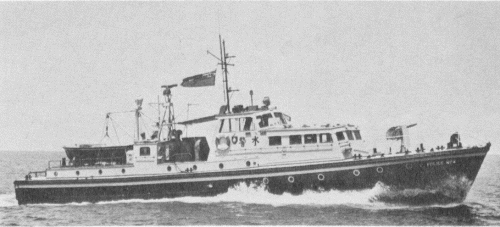

Sea Horse 1979
Project history
Patrol craft.
Modernizations
None.
Naval service
No significant events.
