PUNTA CAXINAS landing craft utility (1987)

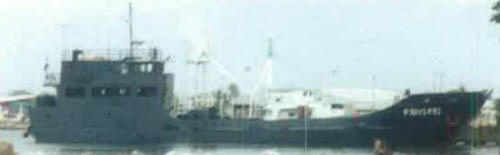

Punta Caxinas 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Punta Caxinas | FNH1491 | Lantana Boatyards, Lantana, USA | 11.1986 | 5.1988 | stricken 2017 |
Technical data
| Displacement standard, t | 419 |
|---|---|
| Displacement full, t | 625 |
| Length, m | 45.4 |
| Breadth, m | 10.0 |
| Draught, m | 2.00 |
| No of shafts | 3 |
| Machinery | 3 Caterpillar 3416 diesels |
| Power, h. p. | 2025 |
| Max speed, kts | 14.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(12) |
| Armament | none |
| Military load | 100 t of vehicles or cargo |
| Electronic equipment | Furuno 3600 radar |
| Complement | 18 |
Graphics
Punta Caxinas 2004
Project history
LCU. Can carry 100 t of vehicles or cargo on deck or 4 standard 20ft cargo containers and 175m³ of fuel.
Modernizations
None.
Naval service
No significant events.
