GUAYMURAS patrol boats (1977-1980)





Honduras 2011

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Guaymuras FNH1051, 1993- FNH101, 2012- FNH1051   Swiftships, Morgan City, USA     4.1977 in service (2019)
Honduras FNH1052, 1993- FNH102, 2012- FNH1052   Swiftships, Morgan City, USA     3.1980 in service (2019)
Hibueras FNH1053, 1993- FNH103, 2012- FNH1053   Swiftships, Morgan City, USA     3.1980 in service (2019)


Technical data


Displacement standard, t

90
Displacement full, t

103
Length, m

32.0
Breadth, m

7.20
Draught, m

1.50 hull
No of shafts2
Machinery

2 MTU 16V538 TB90 diesels
Power, h. p.

7000
Max speed, kts

30
Fuel, tdiesel oil 21
Endurance, nm(kts)1200(18)
Armament

1 x 2 - 20/90 TCM-20, 1 x 1 - 20/70 Mk 68, 2 x 1 - 12.7/90
Electronic equipment

radar
Complement17


Graphics

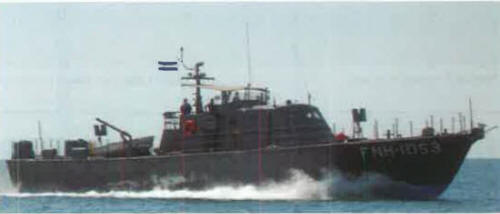

<i>Honduras </i>2011
Honduras 2011


Project history

US Swiftshis 105ft type. Aluminium construction.

Modernizations

2009-2012, all: - 1 x 2 - 20/90, 1 x 1 - 20/70

Naval service

No significant events.

© Ivan Gogin, 2019
