PECCARI patrol boat (1977)
Peccari 1977
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
| Peccari | 1010 | Vosper Thornycroft, Portsmouth, UK | 26.3.1976 | 26.1.1977 | stricken 1992 | ||
| ii | Vosper Thornycroft, Portsmouth, UK | --- | --- | --- | cancelled 1978 |
Technical data
| Displacement standard, t | 96 |
|---|---|
| Displacement full, t | 109 |
| Length, m | 31.4 |
| Breadth, m | 6.00 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 Paxman Ventura 12-cyl diesels |
| Power, h. p. | 3500 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(14) |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | |
| Complement | 22 |
Graphics

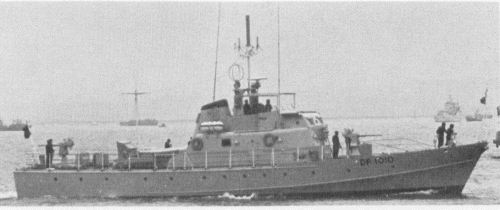

Peccari 1977
Project history
Vosper 103ft type. Second boat was ordered in 1977 but cancelled because of lack of funds.
Modernizations
None.
Naval service
No significant events.
