JAGUAR patrol launches (1971)
Jaguar 1971
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Jaguar Margay Ocelot |
Vosper Thornycroft, Portsmouth, UK: Jaguar, Margay, Ocelot | 1971: Jaguar, Margay, Ocelot | none |
none | 1990: Jaguar, Margay, Ocelot |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | |
| Length, m | 14.0 |
| Breadth, m | 3.40 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 Cummins D366A diesels |
| Power, h. p. | 270 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(12) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | |
| Complement | 6 |
Graphics

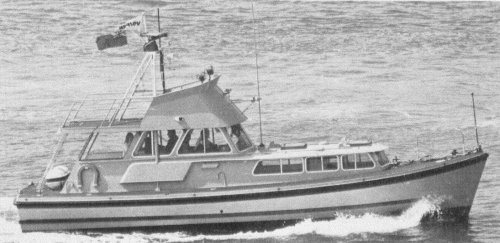

Jaguar 1971
Project history
Fiberglass hull, light0alloy superstructure.
Modernizations
None.
Naval service
No significant events.
