CACINE patrol boats (1994)

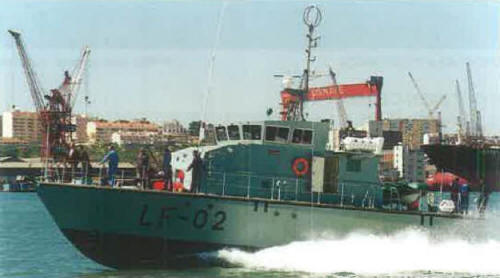

Cacheu 1994
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LF01 Cacine LF02 Cacheu |
CONAFI, Vila Real de San António, Portugal: LF01, 02 |
1994: LF01, 02 |
none |
none |
in service (2020): LF01, 02 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 50 |
| Length, m | 18.5 wl 20.4 oa |
| Breadth, m | 5.90 |
| Draught, m | 1.00 |
| No of shafts | 3 waterjets |
| Machinery | 3 MTU 12V183 TE92 diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno FR2010 radar |
| Complement | 9 |
Graphics
Cacheu 1994
Project history
Ordered in 1991 for the Ministry of Fisheries. GRP hull with aluminium deck and superstructure.
Modernizations
None.
Naval service
No significant events.
