KUKULKAN coastal patrol craft (1976)

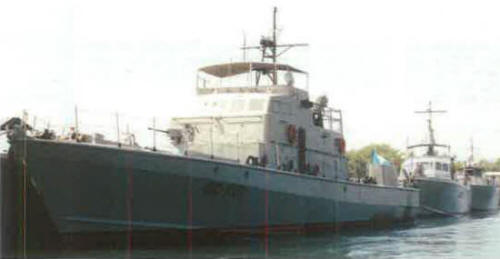

Kukulkan 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Kukulkan | P1051, 1996- GC1051 | Haletr Marine, Chalmette, USA | 4.8.1976 | in service (2019) |
Technical data
| Displacement standard, t | 90 |
|---|---|
| Displacement full, t | 110 |
| Length, m | 29.4 pp 32.0 oa |
| Breadth, m | 6.30 |
| Draught, m | 1.90 propellers |
| No of shafts | 2 |
| Machinery | 2 General Motors 16V149TI diesels |
| Power, h. p. | 3200 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1150(20) |
| Armament | 1 x 1 - 75/25 recoilless gun, 2 x 1 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 mortar) |
| Electronic equipment | radar |
| Complement | 20 |
Graphics
Kukulkan 2004
Project history
US Broadsword design.
Modernizations
1989: - 1 x 1 - 75/25, 2 x 1 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 mortar); + 2 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90
1991: - 2 x 1 - 20/70, radar; + 2 x 1 - 20/90 GAM-B01, Furuno radar
1996: diesels were replaced by 4 General Motors Detroit Diesel 8V92TA (2600hp, 22kts)
Naval service
No significant events.
