KATSONIS submarine (1946/1973)





Katsonis 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Κατσώνης [Katsonis] (ex-Remora) S115   Portsmouth N Yd, USA 5.3.1945 12.7.1945 3.1.1946 // 29.10.1973 stricken 3.1993


Technical data


Displacement standard, t1660
Displacement normal, t

1975 / 2540

Length, m

99.5

Breadth, m

8.23

Draught, m

5.18

No of shafts

2

Machinery

4 Fairbanks-Morse 38D81/8-10 diesel-generators / 4 electric motors

Power, h. p.

4610 / 5480

Max speed, kts

17.2 / 14.5

Fuel, t

diesel oil 378 - 472

Endurance, nm(kts)11000 (10) / 95 (5)
Armament

10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern)

Electronic equipmentSS-2A radar, BQR-2B, BQG-4 PUFFS sonars, WLR-1 ECM suite
Complement

85

Diving depth operational, m

135



Standard scale images

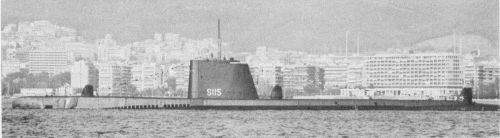

<i>Katsonis </i>1980
Katsonis 1980


Graphics


<i>Katsonis </i>1979
Katsonis 1979


Project history

Former USN Tench-class submarine, received GUPPY III conversion.

Modernizations

None.

Naval service

No significant events.
