OINOUSSAI tank landing ships (1953-1954/1977)

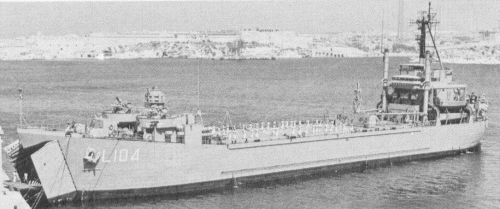

Oinoussai 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Οινούσσαι [Oinoussai] (ex-Terrell County, ex-LST1157) | L104 | Bath Iron Wks, USA | 3.3.1952 | 6.12.1952 | 14.3.1953 // 17.3.1977 | stricken 2003 | |
| Κος [Kos] (ex-Whitfield County, ex-LST1169) | L116 | Christy SB, Sturgeon Bay, USA | 21.11.1952 | 22.8.1953 | 14.9.1954 // 17.3.1977 | stricken 7.2001 |
Technical data
| Displacement standard, t | 2590 |
|---|---|
| Displacement full, t | 6225 |
| Length, m | 112.4 |
| Breadth, m | 16.7 |
| Draught, m | 3.70 mean 4.90 max |
| No of shafts | 2 |
| Machinery | 4 General Motors 16-278A diesels |
| Power, h. p. | 6000 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 15000(9) |
| Armament | 3 x 2 - 76/50 Mk 33, helicopter deck |
| Military load | 10 tanks or 17 LVTP or 2000t of cargo, 395 marines, 4 LCVP |
| Electronic equipment | SPS-10, 2x SPG-34, nav. radars |
| Complement | 115 |

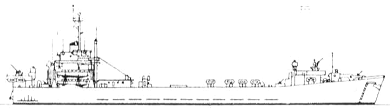

Standard scale images
Oinoussai 1980
Graphics
Oinoussai 1978
Project history
Former USN Terrebonne Parish class LSTs.
Modernizations
early 1980s, both: + 3 x 1 - 20/90 Rh-202
Naval service
No significant events.
