Samos 2003

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Χίος [Chios]	L173		Elefsis SY	13.4.1987	16.12.1988	30.5.1996	in service (2019)
Σάμος [Samos]	L174		Elefsis SY	9.1987	6.4.1989	20.5.1994	in service (2019)
Ικαρία [Ikaria]	L175		Elefsis SY	9.5.1988	22.10.1998	6.10.1999	in service (2019)
Λέσβος [Lesbos]	L176		Elefsis SY	6.4.1989	5.7.1990	22.2.1999	in service (2019)
Ρόδος [Rodos]	L177		Elefsis SY	20.11.1989	6.10.1999	30.5.2000	in service (2019)

Technical data

Displacement standard, t	2770
Displacement full, t	4440
Length, m	106.4 pp 115.9 oa
Breadth, m	15.3
Draught, m	3.68
No of shafts	2
Machinery	2 Wärtsilä-Nohab 16V25 diesels
Power, h. p.	10000
Max speed, kts	16
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 Rh-202, 2 x 1 - 12.7/90, helicopter deck
Military load	4 LCVP, 20 tanks or 17 AAPC or 15 trucks or 250t cargo, 300 troops
Electronic equipment	type 1007, Triton-G (TRS-3030), Pollux radars, 2x Panda e/o systems, DR2000 ECM suite, 2x Mk 36 SRBOC decoy RL
Complement	108

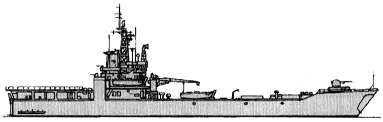

Standard scale images

Graphics

Project history

Ordered in 1986 as replacements for the U.S. LST1/511 class. The program was considerably delayed by the builder's financial troubles, with the last ship originally scheduled to complete in September 1990. Have a raised helicopter deck aft capable of supporting one Agusta-Bell AB-212B helicopter. The bow ramp is capable of supporting 55t vehicles; there is also a stern loading ramp and a ramp from the upper deck amidships to the tank deck.

Modernizations

None.

Naval service

No significant events.
