1994

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
(ex-Seetaucher)	ABM20		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seenadel)	ABM21		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seedrache)	ABM22		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seespinne)	ABM23		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seeotter)	ABM24		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seezunge)	ABM25		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seelilie)	ABM26		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seefeder)	ABM27		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seerose)	ABM28		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008
(ex-Seenelke)	ABM29		Rheinwerft, Walsum, West Germany			1966 // 5.3.1991	stricken 2008
(ex-Huchen)	ABM30		Rheinwerft, Walsum, West Germany			1966 // 25.4.1991	stricken 2008

Technical data

Displacement standard, t	116
Displacement full, t	168
Length, m	23.6
Breadth, m	6.40
Draught, m	1.46
No of shafts	2
Machinery	2 MWM diesels
Power, h. p.	684
Max speed, kts	10.6
Fuel, t	diesel oil
Endurance, nm(kts)	1430(7)
Armament	none
Military load	60 t of cargo or 60 troops
Electronic equipment	radar
Complement	7

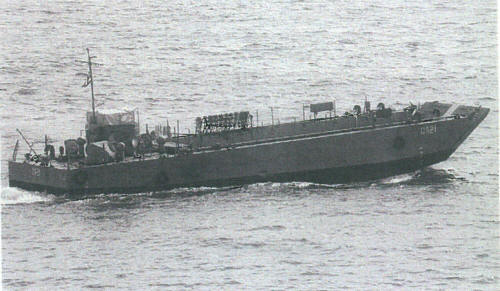

Graphics

Project history

Former Type 521 landing craft of Bundesmarine.

Modernizations

None.

Naval service

No significant events.
