Navmachos 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate

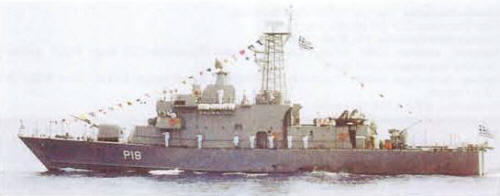

Αρματωλός [Armatolos]	P18		Hellenic Shipyards, Skaramanga	8.5.1989	19.12.1989	9.3.1990	in service (2019)
Ναυμάχος [Navmachos]	P19		Hellenic Shipyards, Skaramanga	9.11.1989	16.5.1990	15.7.1990	in service (2019)

Technical data

Displacement standard, t	420
Displacement full, t	515
Length, m	51.6 pp 54.8 oa
Breadth, m	8.10 wl 10.0 oa
Draught, m	2.55
No of shafts	2
Machinery	2 MTU 12V1163 TB93 diesels
Power, h. p.	10000
Max speed, kts	24
Fuel, t	diesel oil
Endurance, nm(kts)	2200(16)
Armament	1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 Rh-202, mines
Electronic equipment	Decca 1226 radar, DR2000 ECM suite, 2x Barricade decoy RL
Complement	36 + 25 troops

Standard scale images

Graphics

Project history

Lengthened version of Osprey 55 design licensed from Frederikshavn Vaerft, Denmark. Original order for two units (with an option for two more) placed in 1988. It was intended to arm them with four Harpoon SSM, a twin Bofors mount plus associated radars. Only two boats were built, the further ten projected vessels were cancelled in favour of the locally-designed 'P 100' class.

Modernizations

1994, both: + 1 x 1 - 76/62 OTO-Melara Compact, Triton-G, RTN-10X radars

Naval service

No significant events.
