LS-055 patrol launches (1980s)
LS-101 2000
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ΌΛ-... [OL-...], 2004- ΛΣ-055 [LS-055] ΌΛ-... [OL-...], 2004- ΛΣ-065 [LS-065] ΌΛ-... [OL-...], 2004- ΛΣ-084-113 [LS-084-113] |
Olympic Marine, Lavrio: all |
1980s: all |
None |
None |
early 2000s: LS-089-094, 096, 098-100, 102, 104, 105, 108, 113 early 2010s: LS-055 2017-18: LS-065, 084-088, 095, 097, 101, 101, 103, 107, 109, 111, 112 in service (2019): LS-106, 108, 110 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 14 |
| Length, m | 12.1 pp 13.5 oa |
| Breadth, m | 4.35 |
| Draught, m | 0.60 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 600 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | JRC radar |
| Complement | 4 |
Graphics

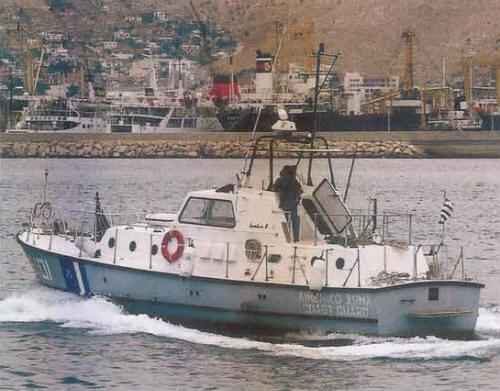

LS-101 2000
Project history
U.K. Keith Nelson GRP hull design.
Modernizations
None.
Naval service
No significant events.
