LS-010 patrol boats (1977-1988)





LS-040 2007

Ships


Names Builders Completed Losses Transfers Discarding

ΛΣ-010 [LS-010]

ΛΣ-020 [LS-020]

ΛΣ-030 [LS-030]

ΛΣ-040 Καζάκος [LS-040 Kazakos]

Hellenic SY, Skaramanga: LS-010, 020, 030, 040

1977-1988: LS-010, 020, 030, 040

None

None

in service (2019): LS-010, 020, 030, 040



Technical data


Displacement standard, t75
Displacement full, t86
Length, m27.0 pp 29.0 oa
Breadth, m5.00
Draught, m1.70
No of shafts2
Machinery2 MTU 12V331 TB81 diesels
Power, h. p.2720
Max speed, kts

27

Fuel, tdiesel oil
Endurance, nm(kts)1600(25)
Armament2 x 1 - 20/70 Rh-202
Electronic equipmentradar
Complement15


Graphics

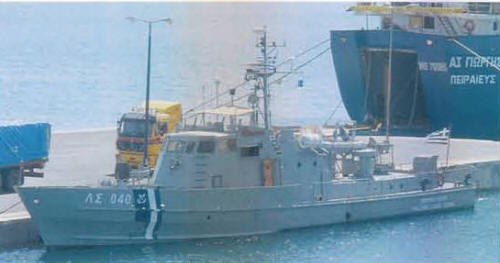

LS-040 2007
LS-040 2007


Project history

Design by Abeking & Rasmussen, Germany. Used for air/sea rescue. Round-bilge steel-construction hull.

Modernizations

None.

Naval service

No significant events.
